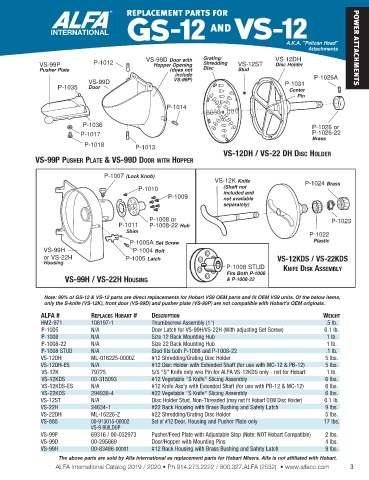

REPLACEMENT PARTS FOR
INTERNATIONAL
A.K.A. "Pelican Head"
Attachments POWER ATTACHMENTS
Shredding
Disc Holder
VS-99P P-1012 VS-99D Door with Grating/ VS-12ST VS-12DH
Hopper Opening
Pusher Plate (does not Disc Stud
include P-1026A
VS-99D VS-99P) P-1031
P-1035 Door Center
Pin
P-1014
P-1036 P-1026 or
P-1017 P-1026-22
Brass
P-1018 P-1013
Vs-12dh / Vs-22 dh dIsc hoLder
Vs-99p pusher pLate & Vs-99d door WIth hopper
P-1007 (Lock Knob)
VS-12K Knife P-1024 Brass
P-1010 (Shaft not
P-1009 included and
not available
separately)
P-1008 or P-1023
P-1011 P-1008-22 Hub
Shim
P-1022
P-1005A Set Screw Plastic
VS-99H P-1004 Bolt
or VS-22H P-1005 Latch Vs-12Kds / Vs-22Kds
Housing
P-1008 STUD KnIFe dIsK asseMbLy
Fits Both P-1008
Vs-99h / Vs-22h housIng & P-1008-22
Note: 99% of GS-12 & VS-12 parts are direct replacements for Hobart VS9 OEM parts and fit OEM VS9 units. Of the below items,
only the S-knife (VS-12K), front door (VS-99D) and pusher plate (VS-99P) are not compatible with Hobart's OEM originals.
aLFa # repLaces hobart # descrIptIon WeIght
HM2-971 108197-1 Thumbscrew Assembly (1") .5 lb.
P-1005 N/A Door Latch for VS-99H/VS-22H (With adjusting Set Screw) 0.1 lb.
P-1008 N/A Size 12 Back Mounting Hub 1 lb.
P-1008-22 N/A Size 22 Back Mounting Hub 1 lb.
P-1008 STUD N/A Stud fits both P-1008 and P-1008-22 .1 lb.
VS-12DH ML-016225-0000Z #12 Shredding/Grating Disc Holder 5 lbs.
VS-12DH-ES N/A #12 Disc Holder with Extended Shaft (for use with MC-12 & PB-12) 5 lbs.
VS-12K 79725 S/S “S” Knife only w/o Pin for ALFA VS-12KDS only - not for Hobart 1 lb.
VS-12KDS 00-315093 #12 Vegetable "S Knife" Slicing Assembly 6 lbs.
VS-12KDS-ES N/A #12 Knife Ass'y with Extended Shaft (for use with PB-12 & MC-12) 6 lbs.
VS-22KDS 294938-4 #22 Vegetable "S Knife" Slicing Assembly 6 lbs.
VS-12ST N/A Disc Holder Stud, Non-Threaded (may not fit Hobart OEM Disc Holder) 0.1 lb.
VS-22H 24634-1 #22 Back Housing with Brass Bushing and Safety Latch 9 lbs.
VS-22DH ML-16226-Z #22 Shredding/Grating Disc Holder 5 lbs.
VS-888 00-913015-00002 Set of #12 Door, Housing and Pusher Plate only 17 lbs.
VS-9 BUILDUP
VS-99P 69316 / 00-032973 Pusher/Feed Plate with Adjustable Stop (Note: NOT Hobart Compatible) 2 lbs.
VS-99D 00-295669 Door/Hopper with Mounting Pins 4 lbs.
VS-99H 00-83486-00001 #12 Back Housing with Brass Bushing and Safety Latch 9 lbs.
The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
